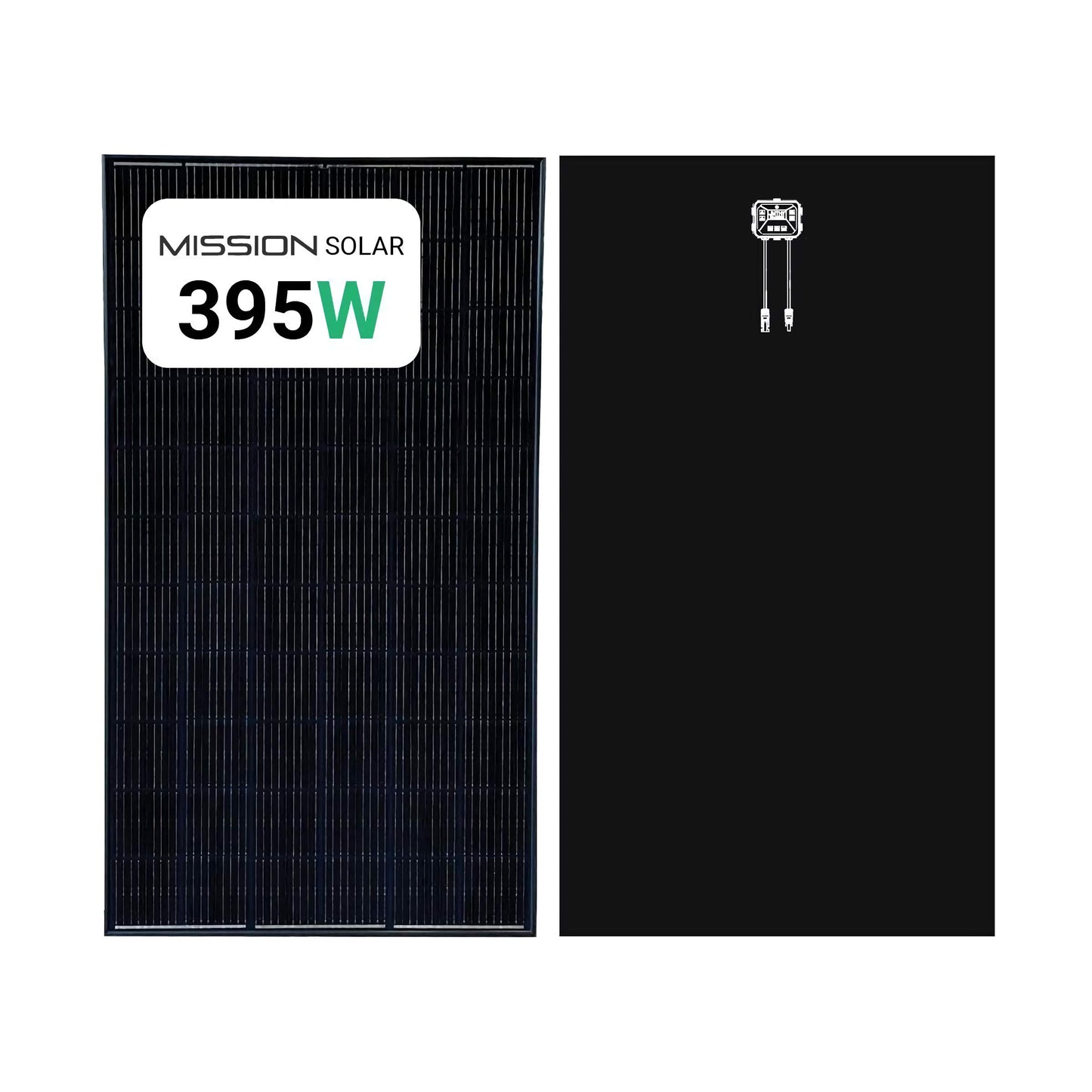

Mission Solar Energy 395W MSE395SX9R Solar Panel

Power Output: 395W
Cell Technology: P-Type Monocrystalline
Design: Robust Build with 66 Cells (6x11) Configuration
Installation and Compatibility:

The Mission Solar 395W module is designed for easy installation with its standard 40mm frame. The panel's robust construction ensures compatibility with various mounting systems, making it suitable for rooftops, ground-mounted systems, and utility-scale installations.

• Connector Type: MC4 or Renhe 05-8 connectors ensure compatibility with standard solar inverters and systems.
• Cable Length: Equipped with 1.2m, 12 AWG cables for ease of installation

Key Features:

• Advanced Technology: Utilizing PERC (Passivated Emitter Rear Contact) technology and a 4-busbar design, the Mission Solar 395W achieves over 18% module efficiency, ensuring optimal energy conversion.
• Superior Aesthetics: The all-black design not only enhances the visual appeal of your solar installation but also contributes to outstanding power output.
• Certified Reliability: The panel meets rigorous standards with certifications for salt mist, ammonia resistance, and is compliant with the Buy American Act, making it a reliable choice for various environments.

Warranty:

• 25-Year Linear Warranty: Enjoy peace of mind with a comprehensive warranty that guarantees long-term performance and durability.

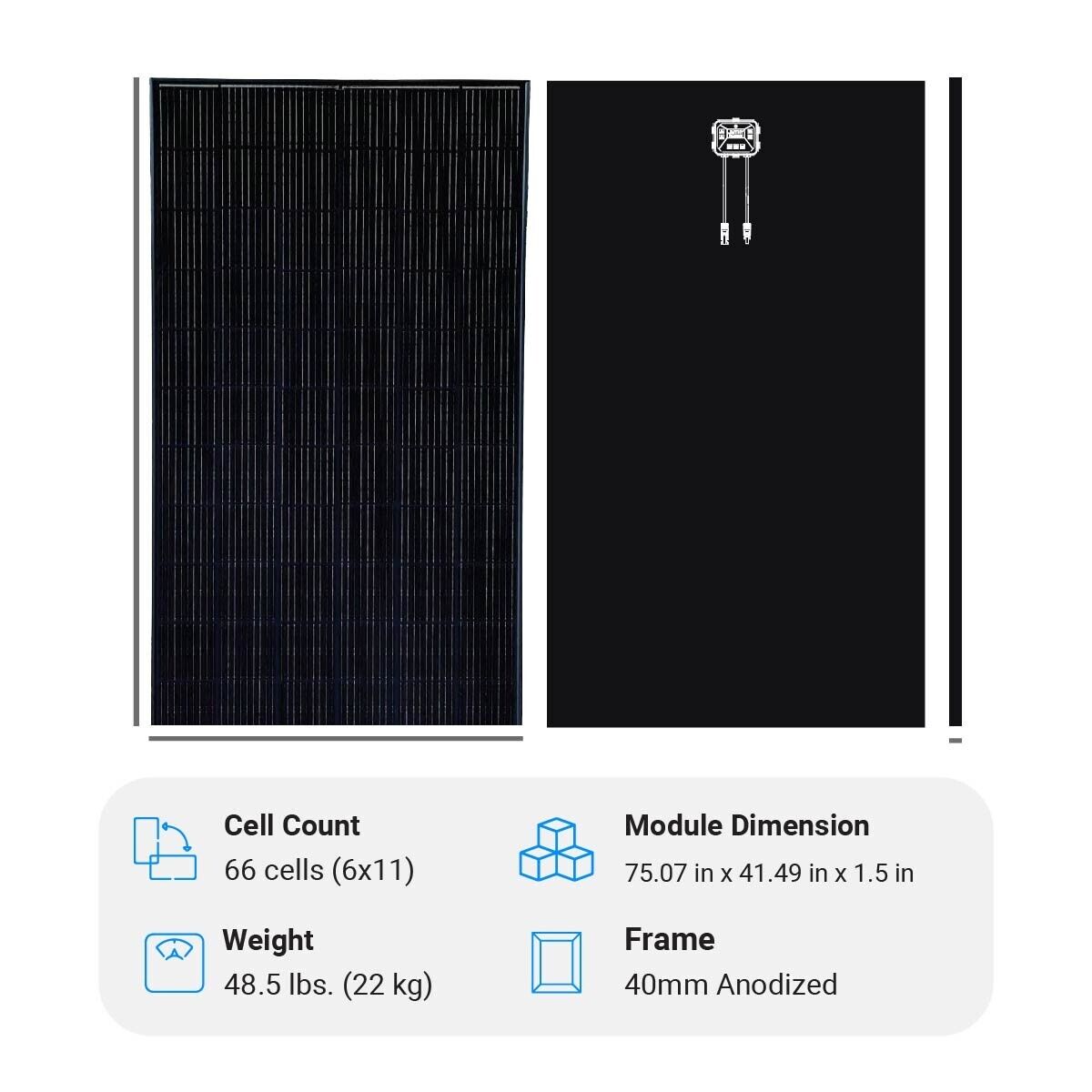

Specifications:

• Model Number: MSE395SX9R
• Rated Power: 395 Watts
• Number of Cells: 66
• Module Efficiency: 19.7%
• Dimensions: 75.08" x 41.49" x 1.57" (1907 mm x 1054 mm x 40 mm)
• Weight: 48.5 lbs (22 kg)

Elevate your solar energy solutions with the Mission Solar 395W Smart Model, combining high efficiency, aesthetic appeal, and robust performance to meet your energy needs sustainably.
