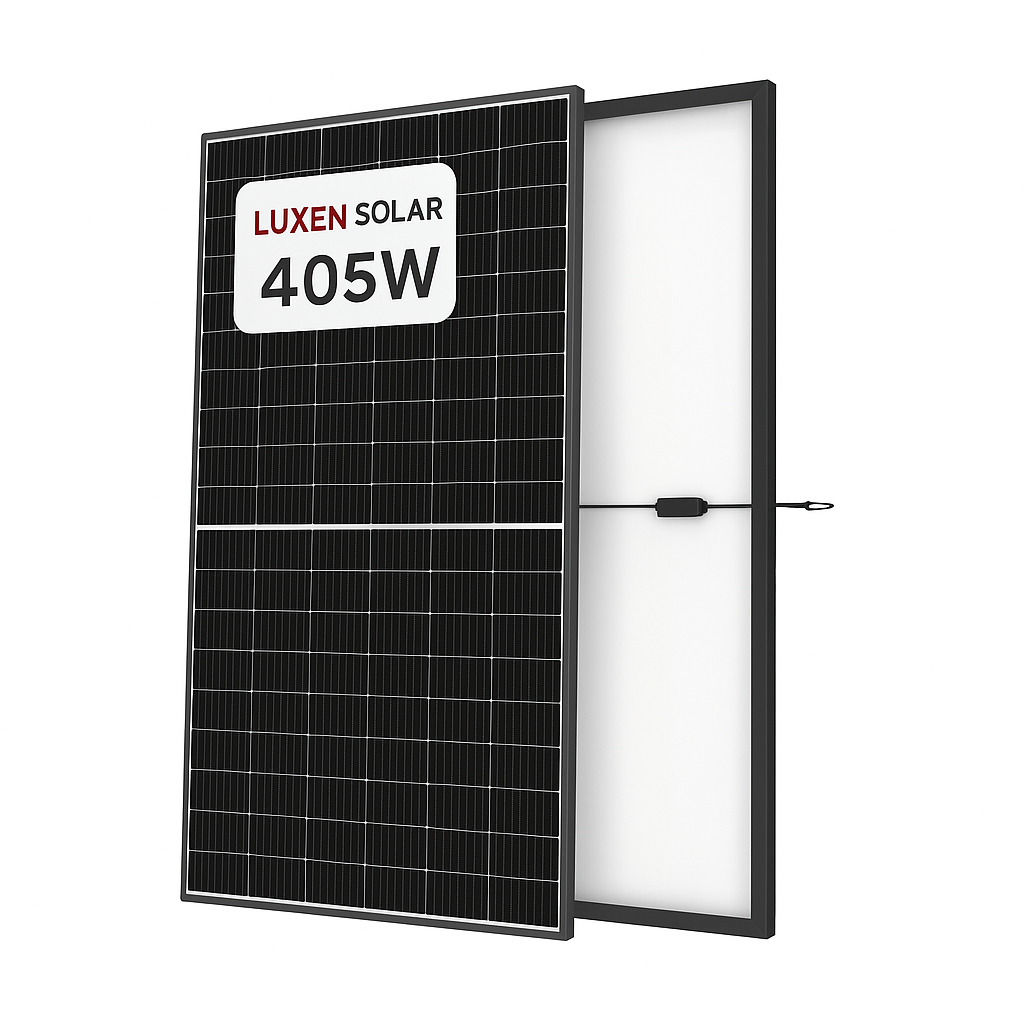

The LUXEN LNVB-405M is a high-efficiency solar panel package designed for optimal energy generation.

Product Overview

• Model: LUXEN LNVB-405M
• Power Output: 405 Watts per panel
• Quantity: 36 panels per pallet

Key Features

• Panel Type:
  • Monocrystalline solar panels featuring a sleek black frame with a white backsheet, making them visually appealing for rooftop installations.
  • Each panel consists of 108 half-cell Mono PERC technology, enhancing performance and efficiency.
• Durability and Warranty:
  • 25-Year Product Warranty: Ensures long-term reliability and performance.
  • 30-Year Linear Power Output Warranty: Guarantees sustained energy production over the lifespan of the panels.

Specifications

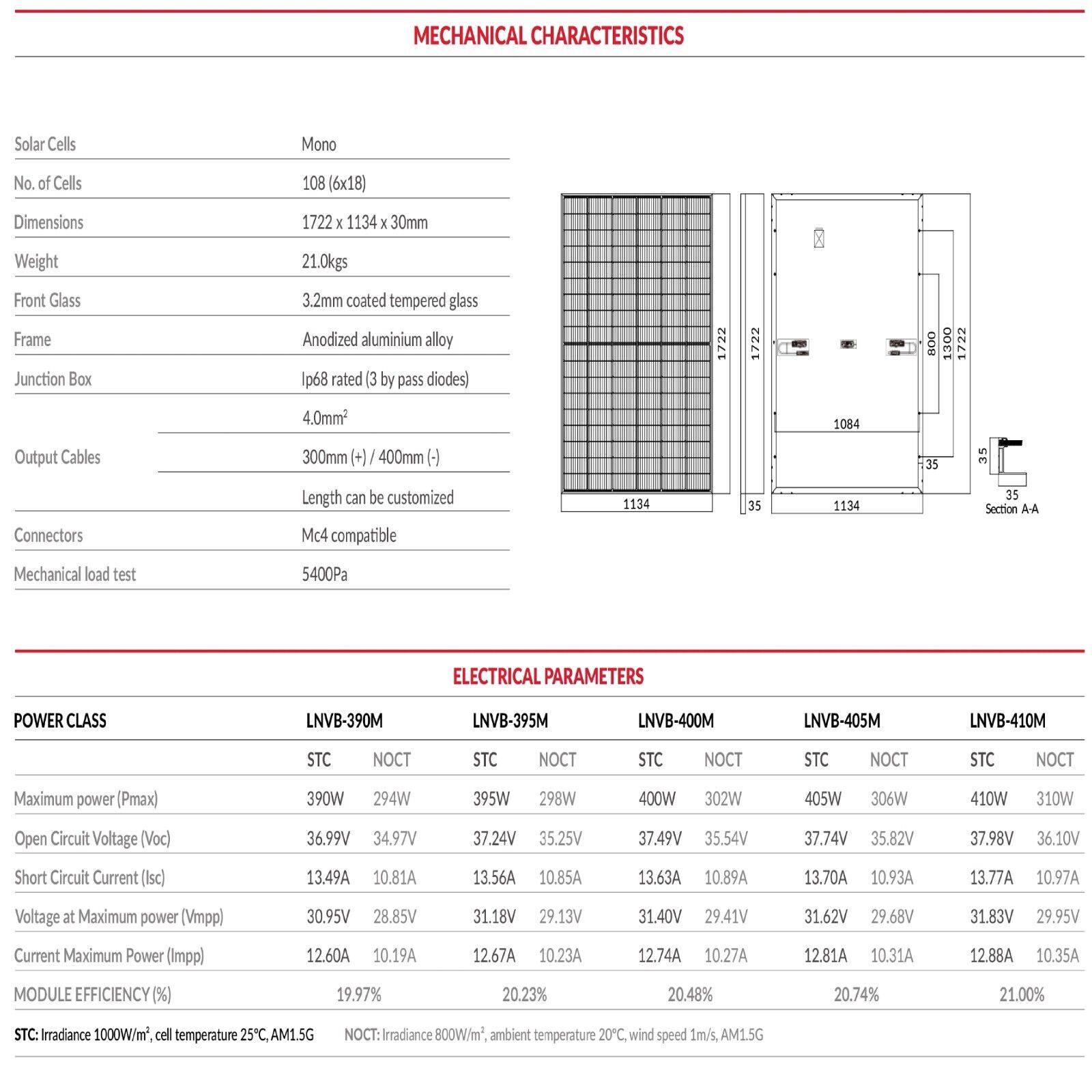

Technical Specifications

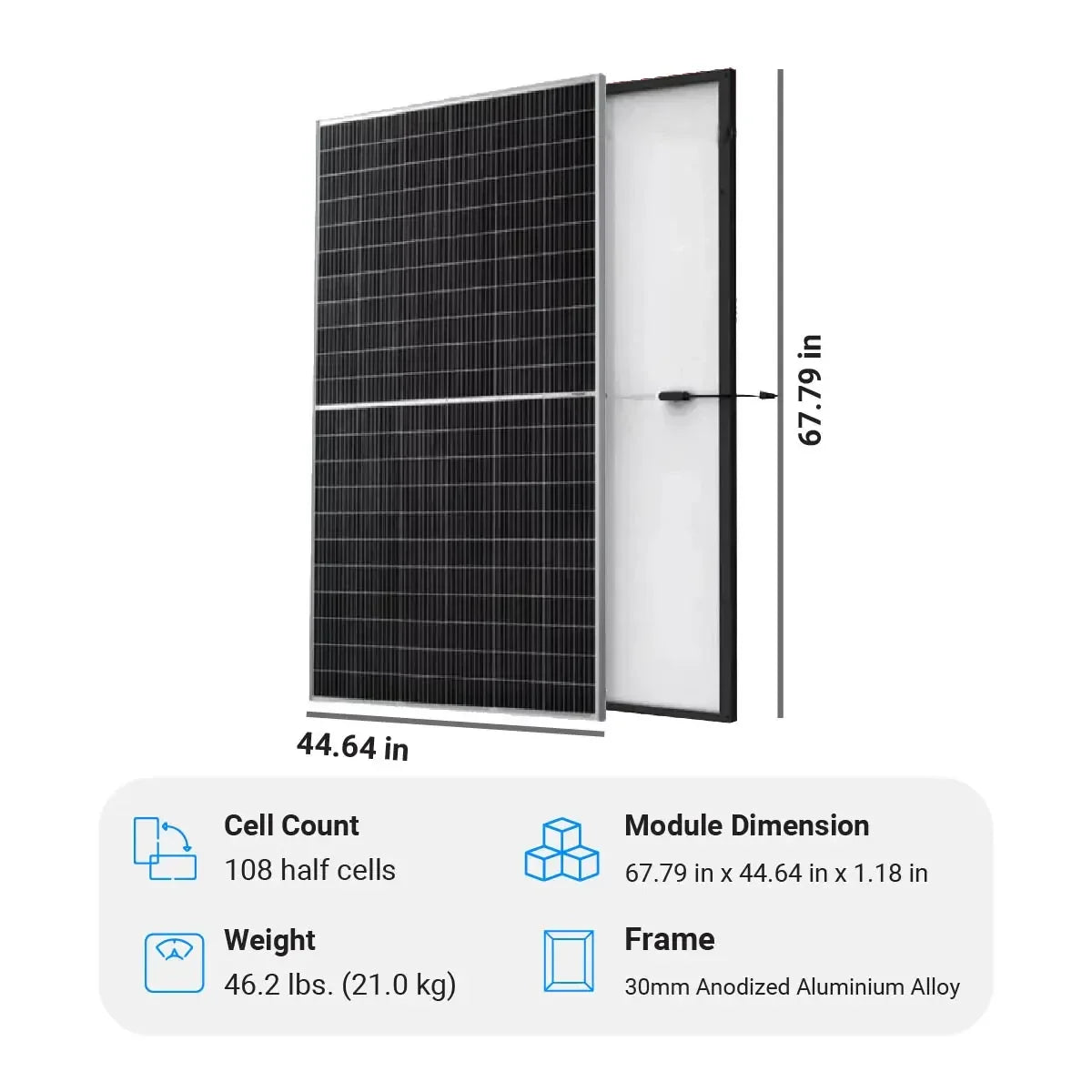

• Dimensions: 1722 mm x 1134 mm x 30 mm (approximately 67.8" x 44.6" x 1.2")
• Weight: 21 kg (approximately 46.3 lbs)
• Operating Temperature Range: -40°C to +85°C
• Cell Count: 108 cells per panel

Specification Data sheet:                  Download Here

Performance and Efficiency

The LUXEN LNVB-405M panels are engineered for maximum power generation with the following advantages:

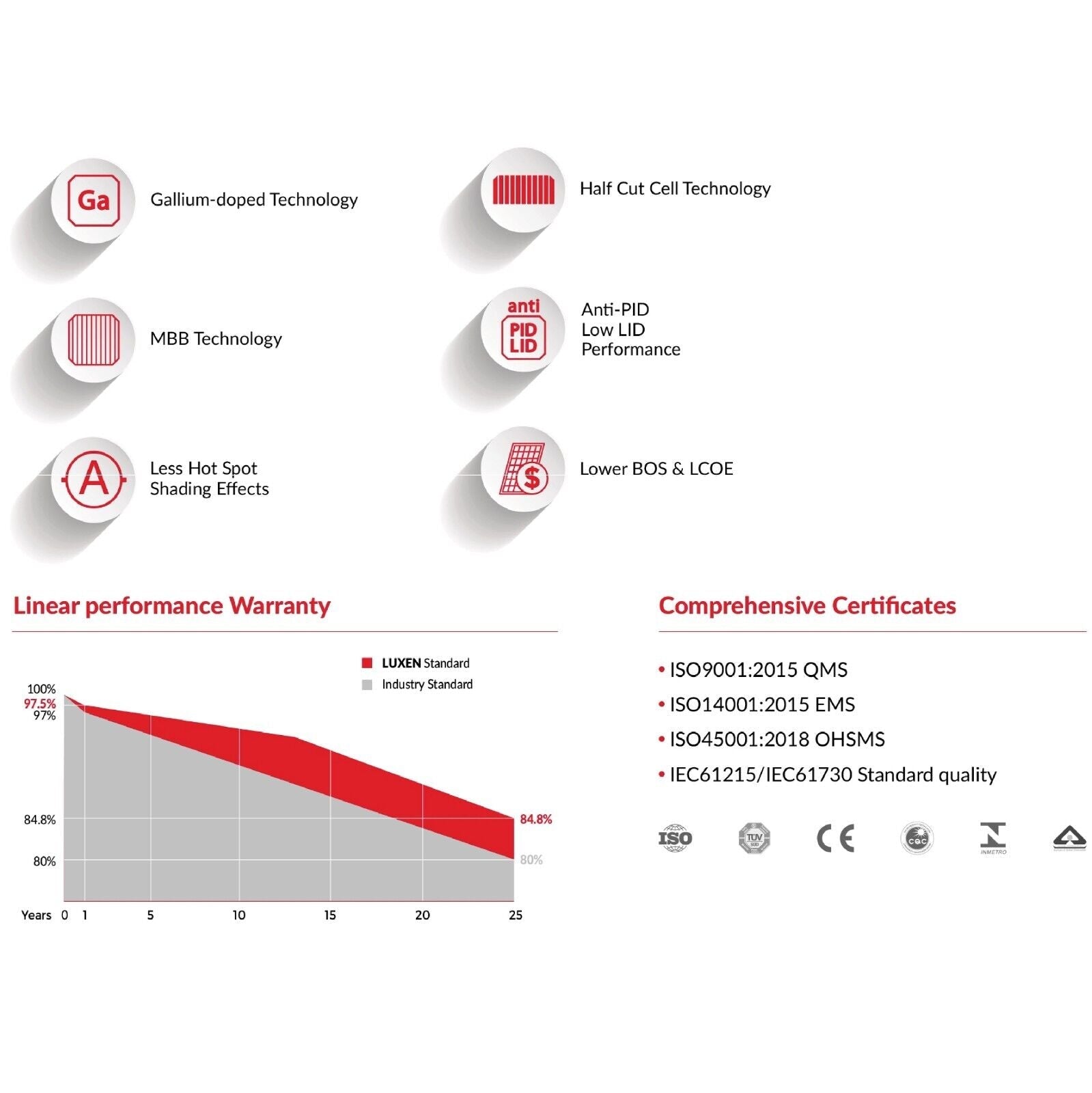

• Gallium Coating: Enhances energy generation efficiency and mitigates light-induced degradation (LID).
• Half-Cut Cell Technology: Increases output and reliability, reducing losses due to shading and improving performance in low-light conditions.

Certifications

The panels are certified by several organizations, ensuring they meet high standards of quality and safety:

• ISO9001:2015 for Quality Management
• ISO14001:2015 for Environmental Management
• ISO45001:2018 for Occupational Health and Safety
• IEC61215/IEC61730 for quality assurance

Applications

These solar panels are suitable for various applications, including:

• Residential rooftops
• Commercial installations
• Agricultural setups

The LUXEN LNVB-405M solar panel package offers a robust solution for those looking to harness solar energy efficiently while ensuring durability and long-term performance.
