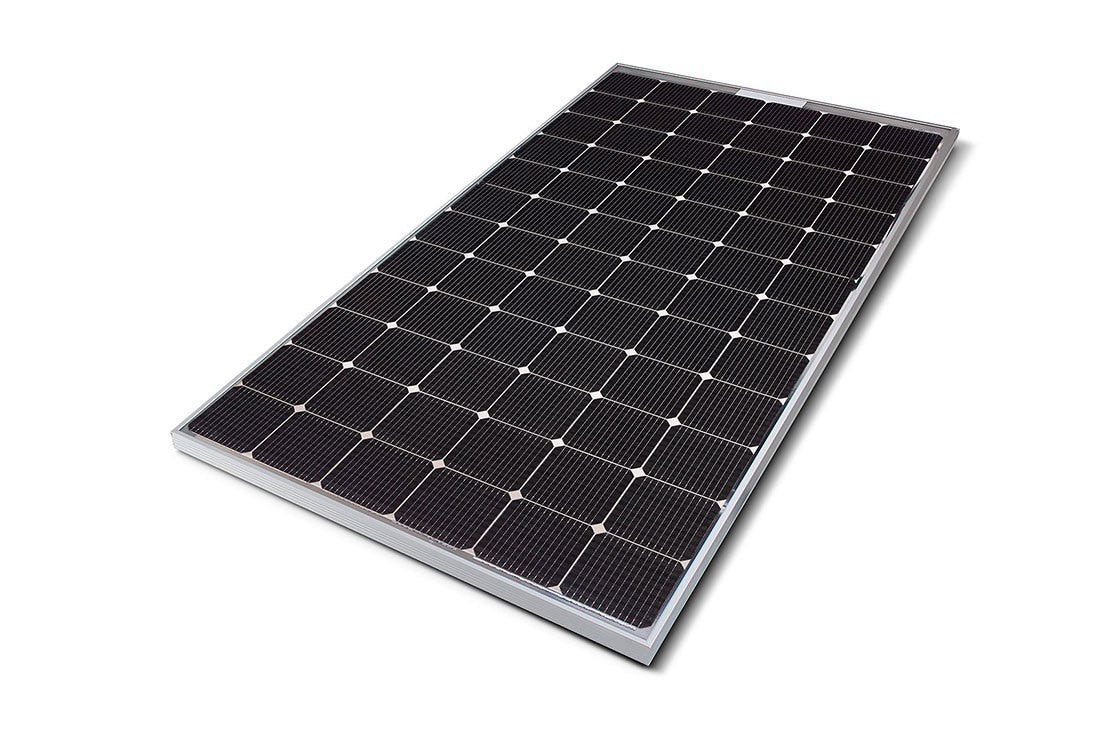

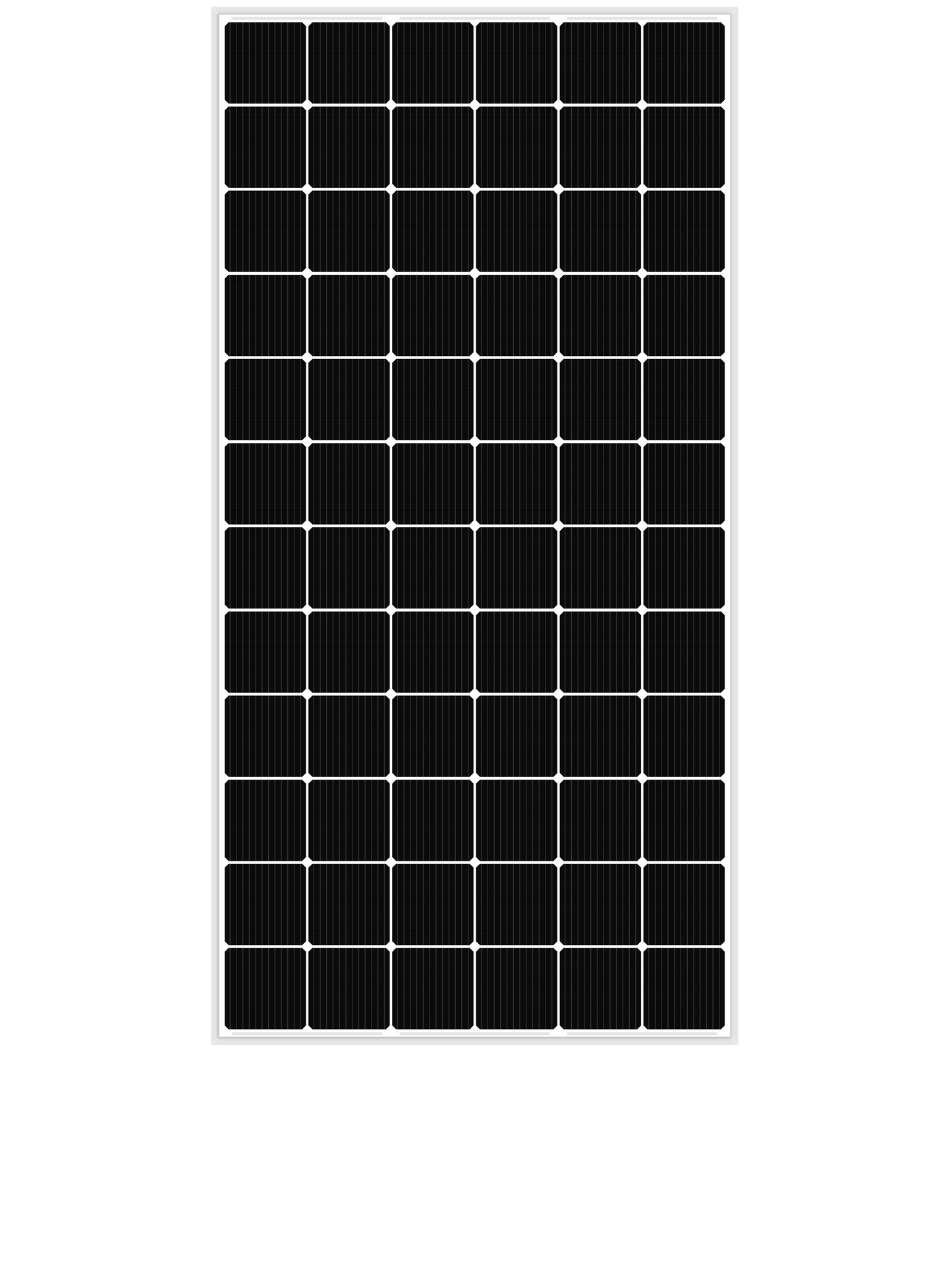

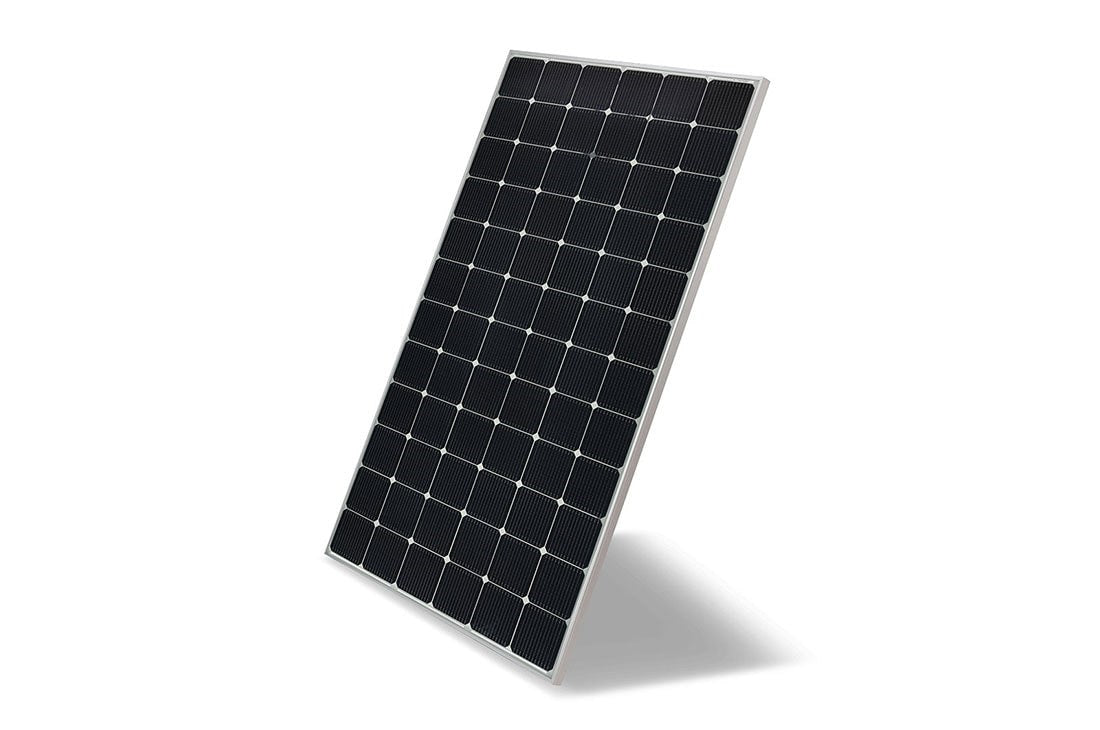

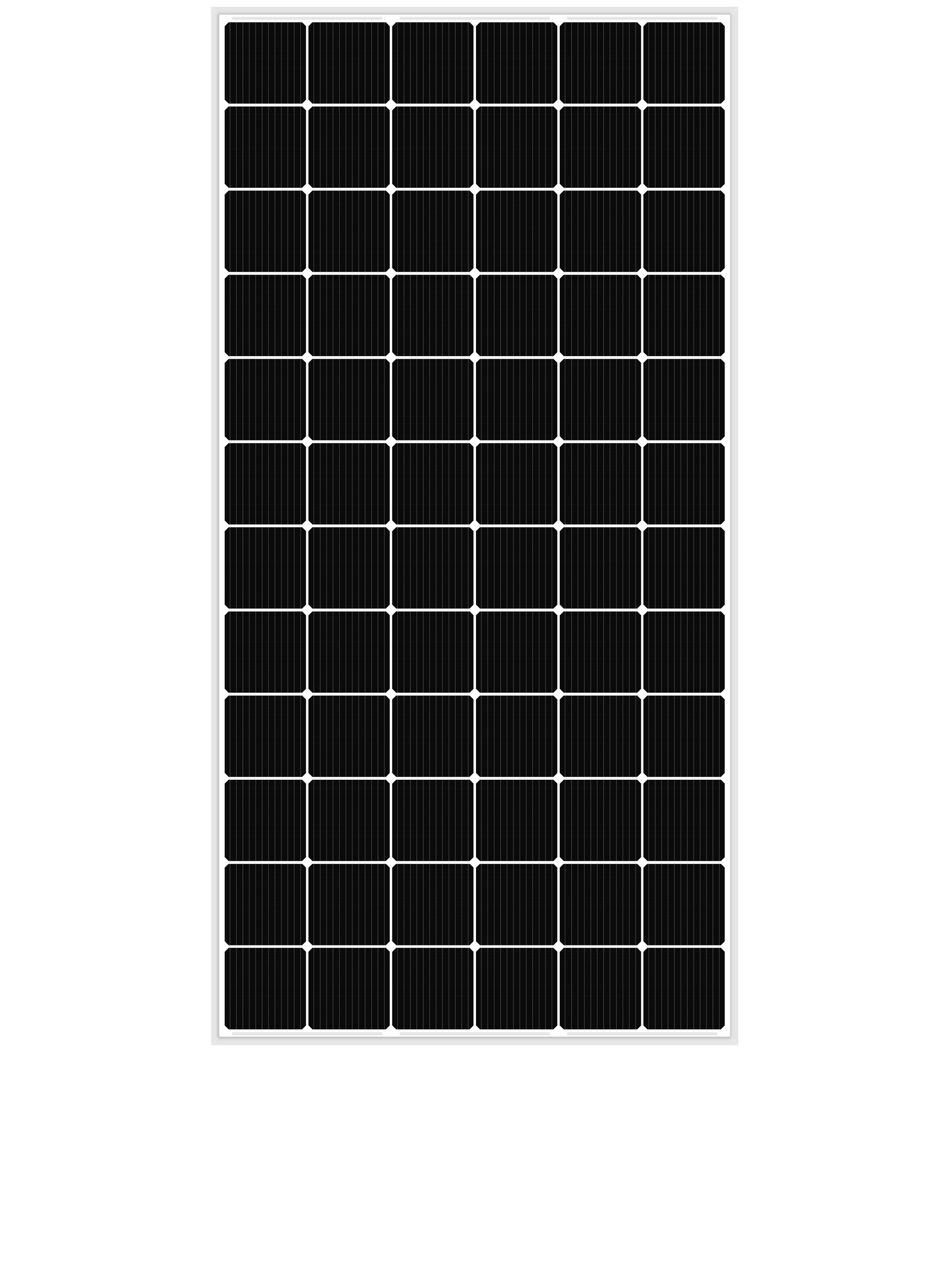

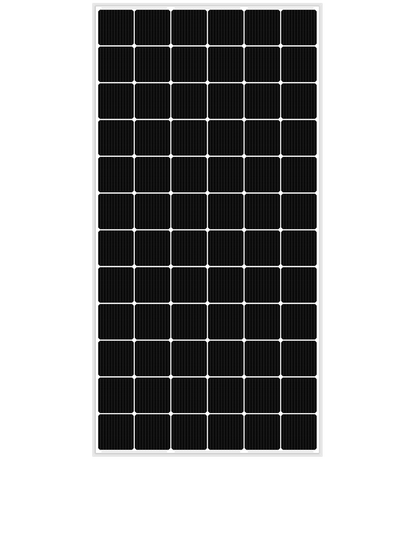

LG NeON® 2 405W Solar Panel LG405N2W-V5

The LG NeON® 2 405W Solar Panel is a high-efficiency monocrystalline module designed for both residential and commercial applications. Utilizing LG's innovative Cello Technology™, this panel offers enhanced performance, durability, and aesthetics. Its 72-cell configuration and robust design make it suitable for various installation environments, ensuring reliable energy production over its lifespan.

Key Features

The LG NeON® 2 405W Solar Panel offers several advanced features:

• High Efficiency: Achieves a module efficiency of 19.5%, maximizing energy output from limited roof space.
• Cello Technology™: Utilizes 12 thin wires instead of 3 busbars to enhance power output and reliability.
• Enhanced Durability: Built to withstand front loads up to 5400 Pa and rear loads up to 3000 Pa.
• Improved Temperature Coefficient: Performs better on sunny days with a temperature coefficient of -0.36%/°C.
• 25-Year Warranty: Comes with a 25-year product and performance warranty, ensuring long-term reliability.

Technical Specifications

These are the key specifications of the LG NeON® 2 405W Solar Panel:

• Model Number: LG405N2W-V5
• Rated Power Output: 405 W
• Module Efficiency: 19.5%
• Cell Type: Monocrystalline / N-type
• Number of Cells: 72 (6 x 12)
• Dimensions (L x W x H): 2024 mm x 1024 mm x 40 mm
• Weight: 20.3 kg
• Frame Color: Silver Anodized Aluminum
• Backsheet Color: White
• Connector Type: MC4 Compatible
• Maximum System Voltage: 1500 V DC
• Operating Temperature Range: -40°C to +90°C
• Certifications: UL 61730, IEC 61215, IEC 61730

For the complete specifications:

Specification Data sheet:                  Download Here

Applications

The LG NeON® 2 405W Solar Panel is suitable for various applications:

• Residential Rooftops: For homeowners seeking high-efficiency panels with a sleek design.
• Commercial Installations: Ideal for businesses aiming to reduce energy costs and carbon footprint.
• Utility-Scale Projects: Suitable for large-scale solar farms requiring reliable and efficient panels.

Warranty

LG provides robust warranty and certifications for the NeON® 2 405W Solar Panel:

• Product Warranty: 25 years, covering parts and labor.
• Performance Warranty: Guaranteed at least 89.6% of initial performance after 25 years.
• Certifications: UL 61730, IEC 61215, IEC 61730, ensuring compliance with international standards.
