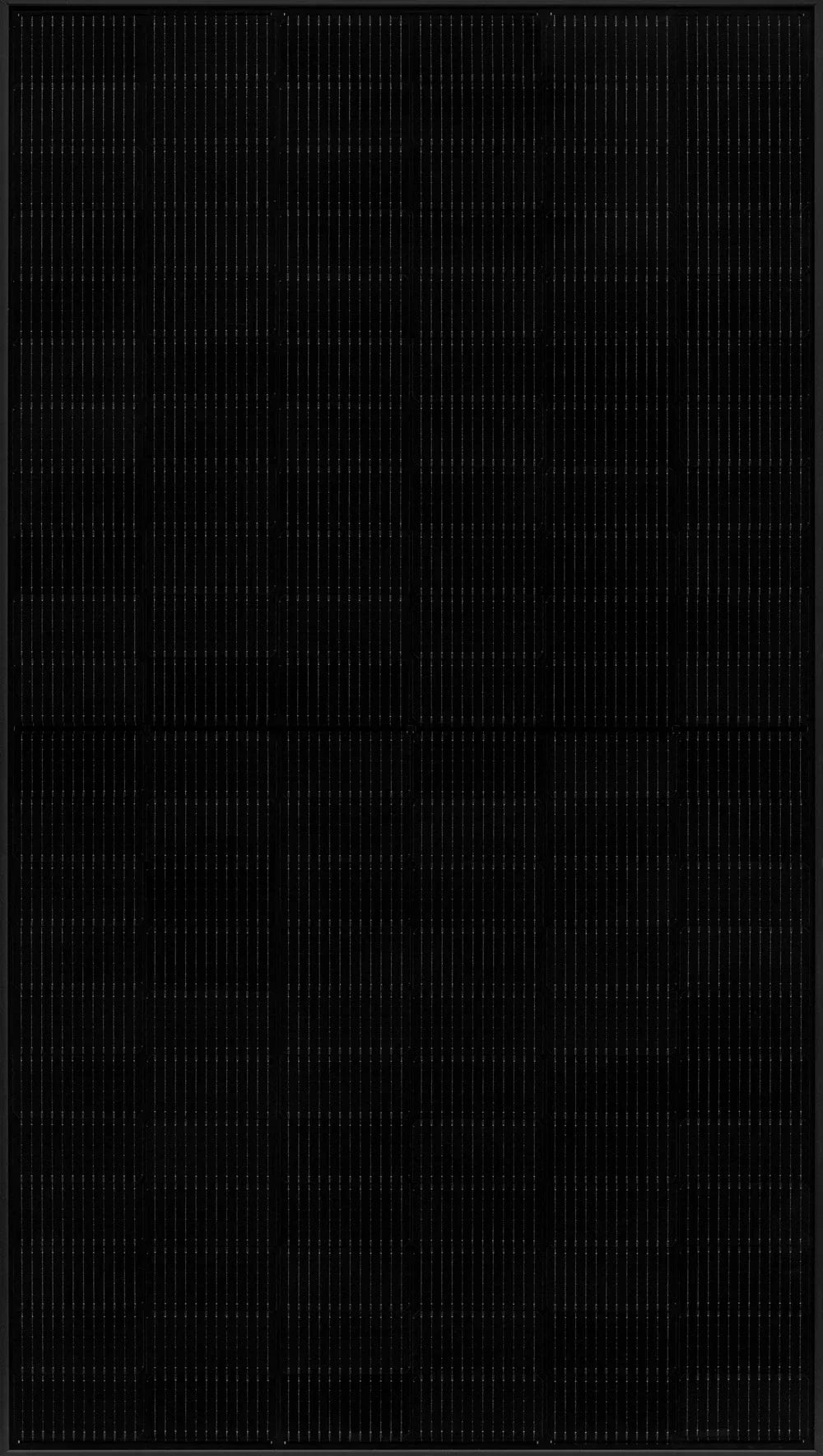

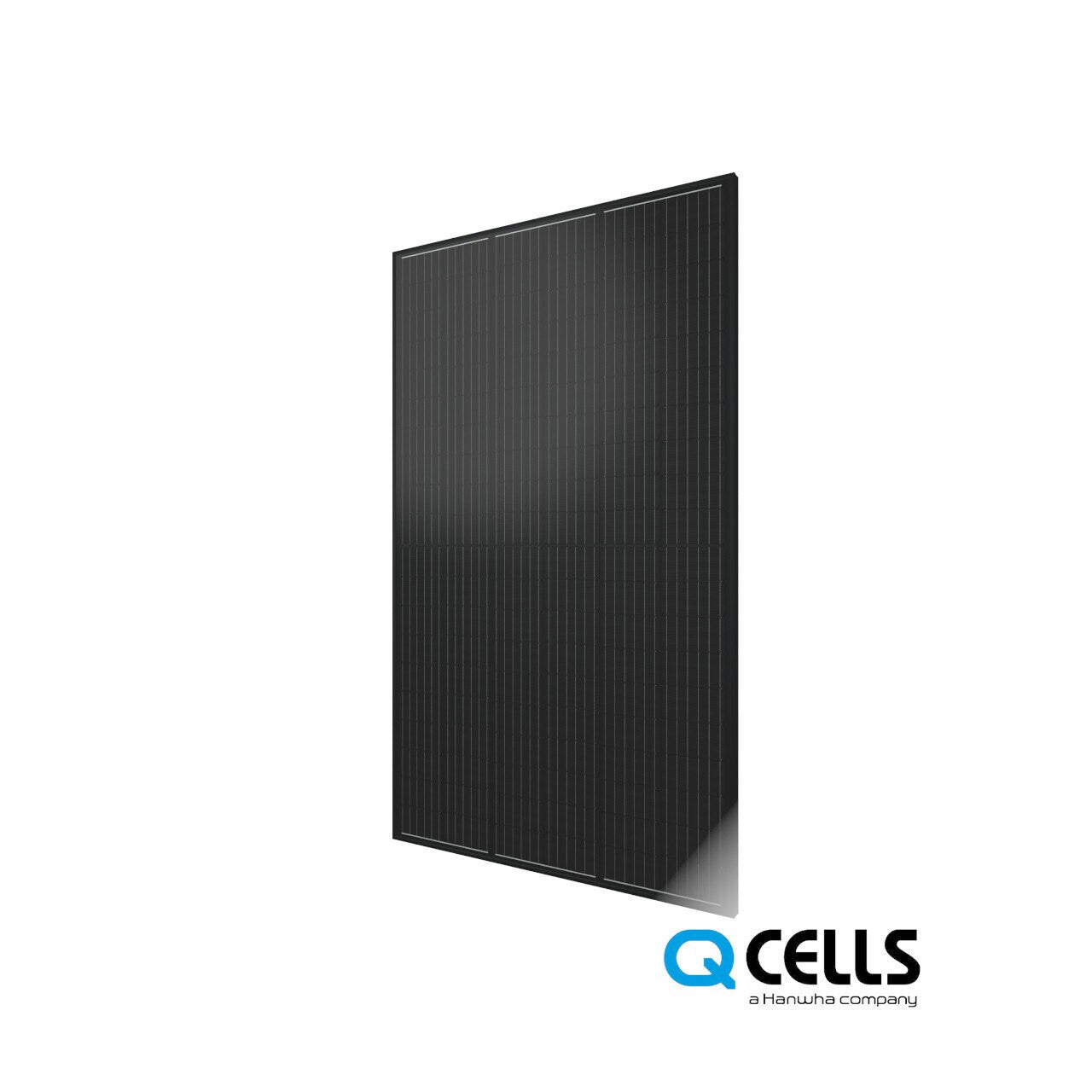

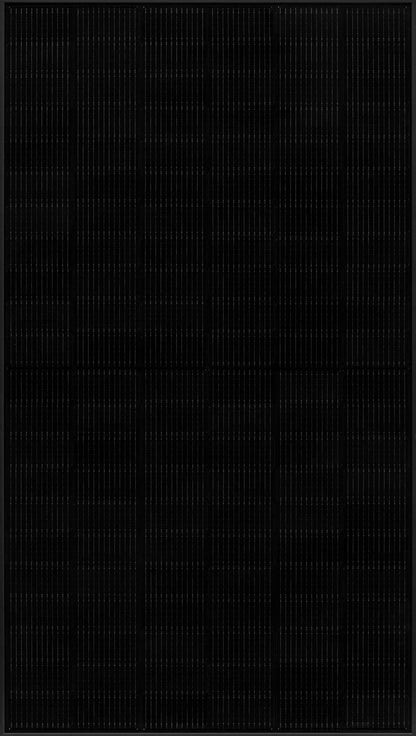

Q.PEAK DUO BLK ML G10+ 410W Solar Panel

The QCELLS Q.PEAK DUO BLK ML-G10+ 410W solar panel is a top-performing, all-black module designed for residential installations. Featuring Q.ANTUM DUO Z Technology, this panel boasts an impressive 20.6% efficiency, making it an excellent choice for homeowners looking to maximize their solar energy production.

The Q.PEAK DUO BLK ML-G10+ 410W is built to withstand extreme weather conditions, with a robust aluminum alloy frame certified for high snow (5400 Pa) and wind loads (4000 Pa). Qcells' rigorous quality control and testing ensure long-lasting performance and reliability, backed by a 25-year product and linear performance warranty.

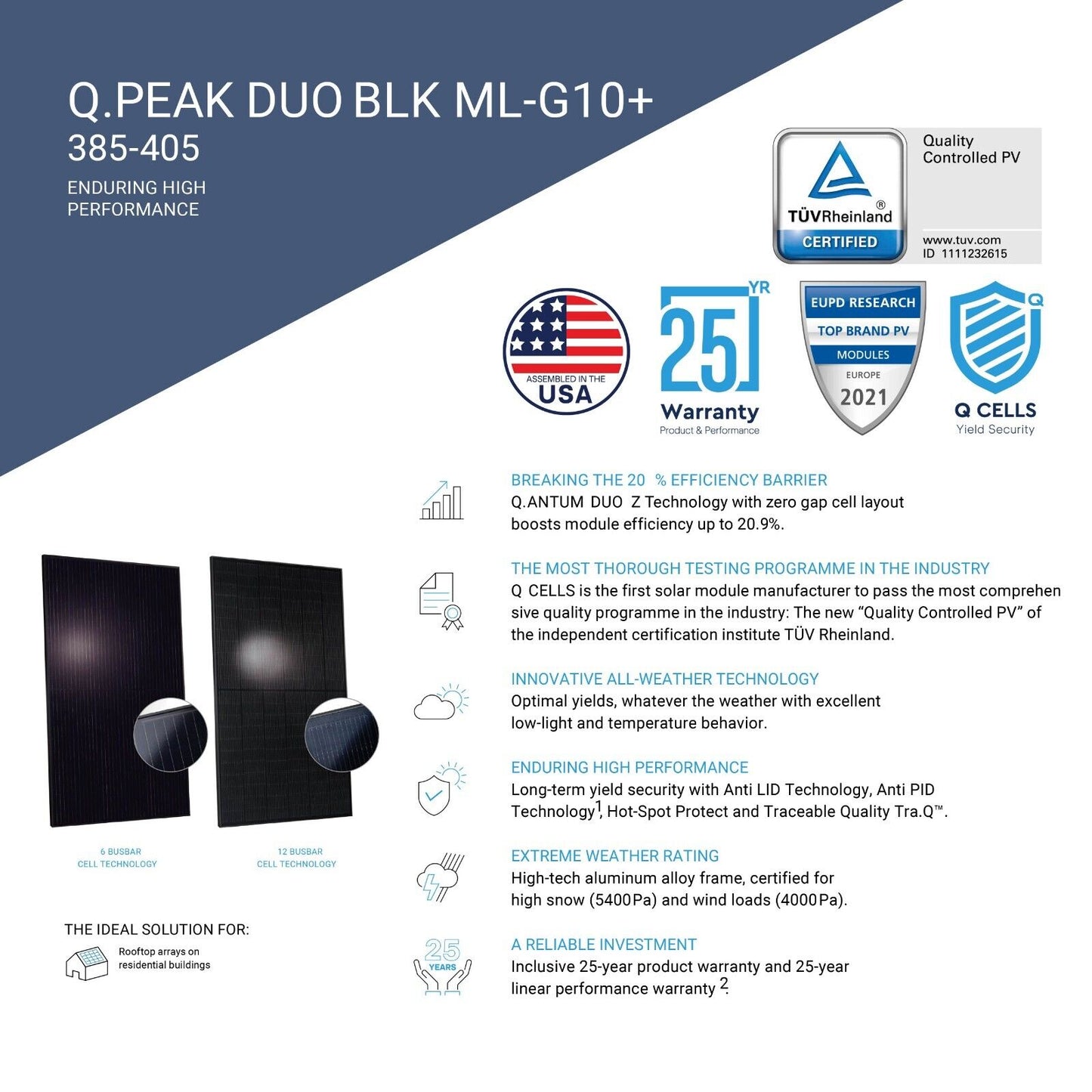

Features

• Q.ANTUM DUO Z Technology with zero-gap cell layout for higher module efficiency
• Sleek, all-black design for enhanced aesthetics
• High-tech aluminum alloy frame certified for extreme weather conditions
• Rigorous quality control and testing for long-term reliability
• 25-year product and linear performance warranty
• Excellent low-light and temperature behavior for optimal year-round performance

Specifications

Specifications:

Series	Q.PEAK DUO BLK ML-G10+
STC Rating	410 W
PTC Rating	381 W
Open Circuit Voltage (V)	45.37
Short Circuit Current (A)	11.20
Frame Color	Black anodised aluminium
Backsheet Color	Black
Power Tolerance	0/+5 Watts
Weight (lbs)	48.5
Length (in)	74.0
Width (in)	41.1
Height (in)	1.26
Module Efficiency (%)	≥ 20.9

Application and warranty

Applications:

The QCELLS Q.PEAK DUO BLK ML-G10+ 410W solar panel is ideal for rooftop arrays on residential buildings. The modules high efficiency and sleek, all-black design make it perfect for homeowners who want to maximize their solar energy production while maintaining an attractive, low-profile appearance on their roof.

Warranty and Certifications

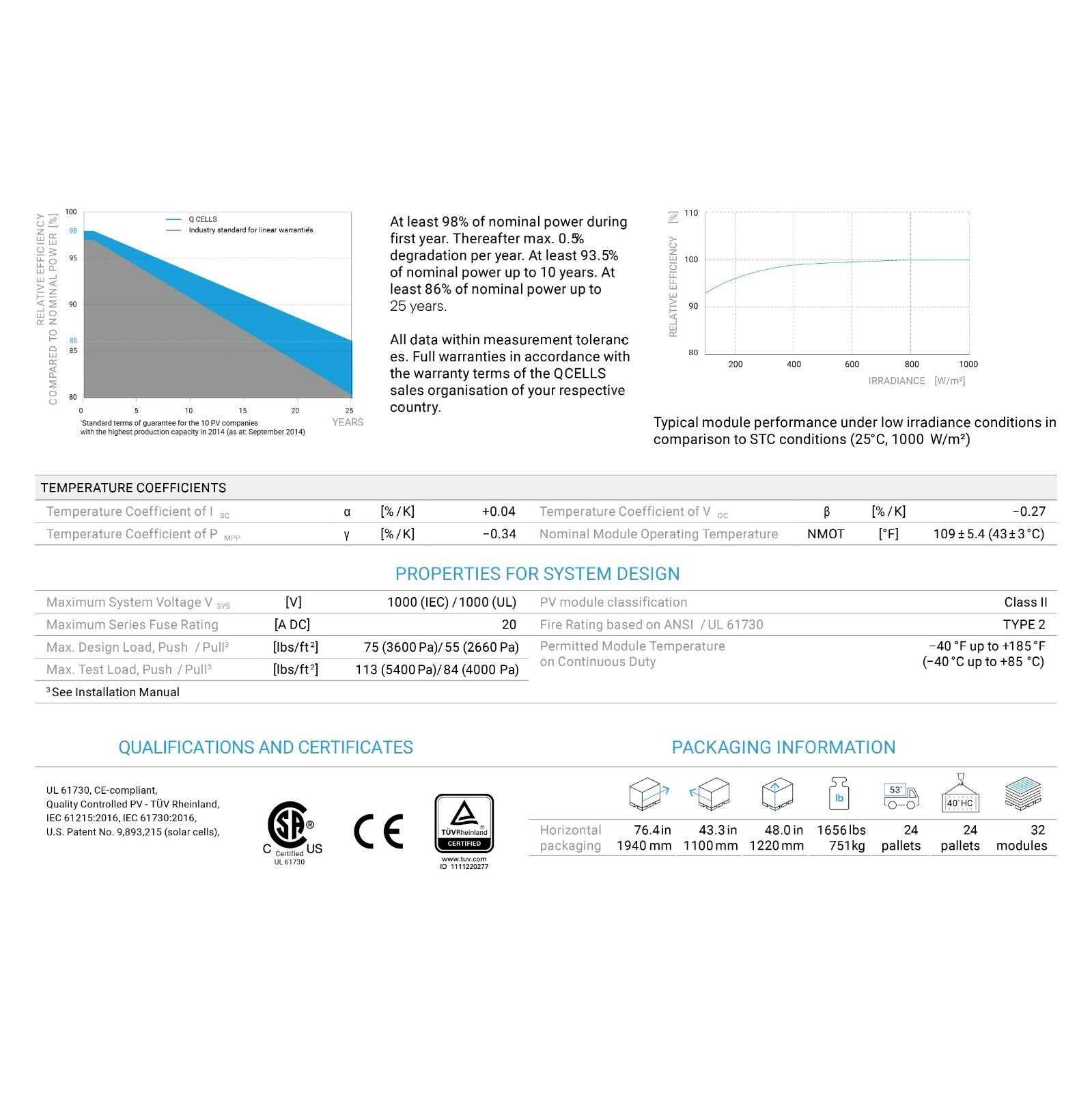

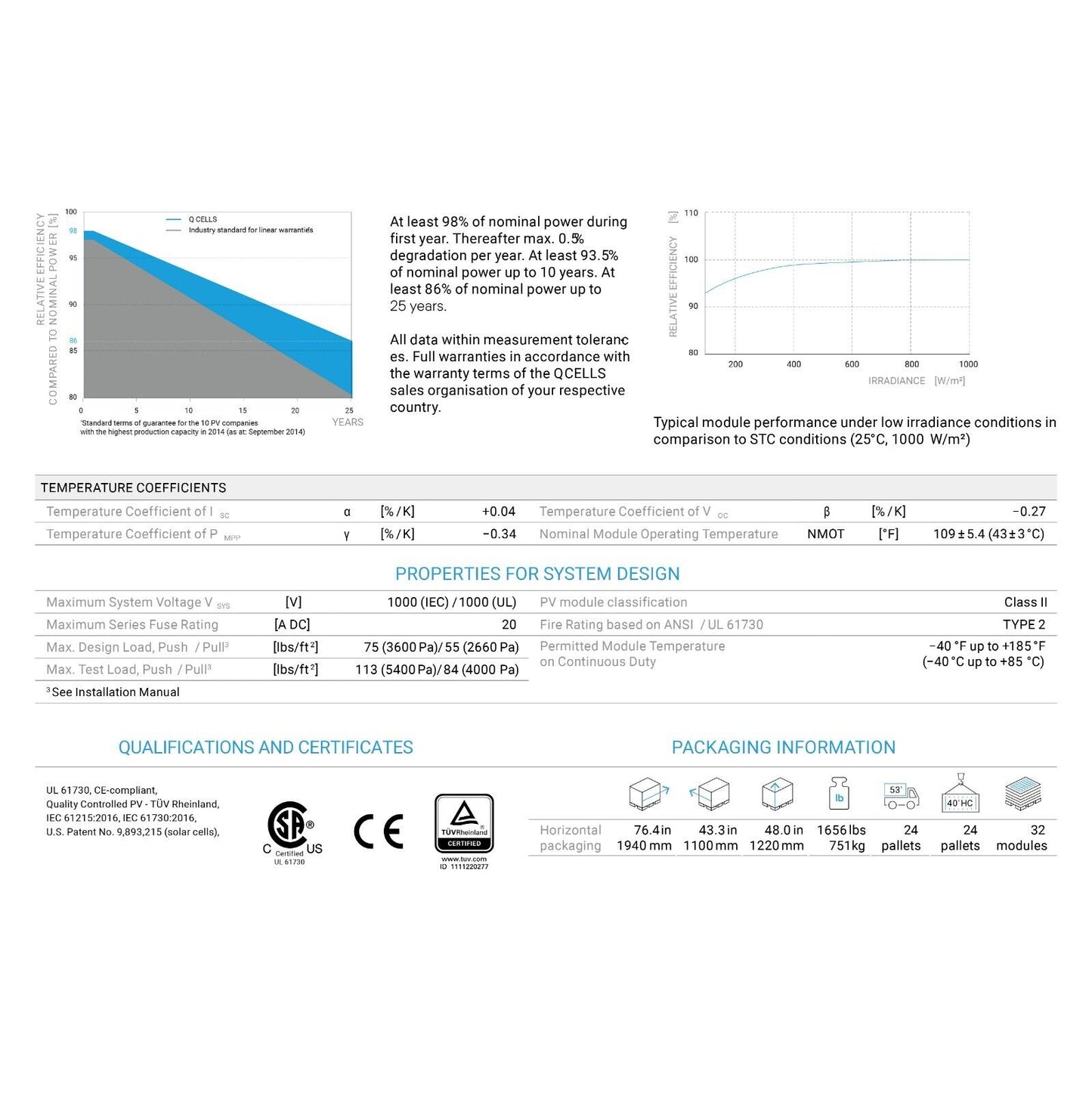

The Q.PEAK DUO BLK ML-G10+ series modules are backed by a 25-year product and linear performance warranty. Qcells guarantees at least 98% of nominal power output during the first year, with a maximum annual degradation of 0.5% thereafter, ensuring at least 86% of nominal power output after 25 years.

UL 61730, CE-compliant, Quality Controlled PV - TÜV Rheinland, IEC 61215:2016, IEC 61730:2016, U.S. Patent No. 9,893,215 (solar cells)
